District Ultrasonic Water Meter
ZLINK DISTRlCT is a bulk ultrasonic water meter with highaccuracy and a wide range of sizes, suitable for watermeasurement as aggregate meter at the inlet service pipeof apartment and complex.
Combining with various loT technologies, ZLINK DISTRICThelps the operator enhance communication coverage andreduce operational cost, which paves the way towardsintelligent water utility and smart city.
-
Wide Measurement Range R500
-
Battery Powered Life Span More Than 10 Years
-
Protection Level: IP68
-
Very Low Pressure Loss 16kPa
-
Leakage Detection and Dry Pipe Detection
-
Integrated with Pressure Detection
Main Functions
Wide Measurement range of Q3/Q1= R500
Ultralow starting flow avoids apparent losses
Bi-directional flow measurement to prevent water tamper
Friendly big LCD displays cumulative volume, instantaneous flow and rich information of alarms
No wearing parts, excellent long-term stability and reliability
Integrated with pressure detection (Optional)
Vacuuming Electron cavity to prevent glass fogging.
Battery powered with lifetime of more than 10 years
Supports a wide range of communication technologies like wireless GPRS, RS485, NB-IoT, etc.
Protection level: Submersible-IP68
Leakage detection and dry pipe detection

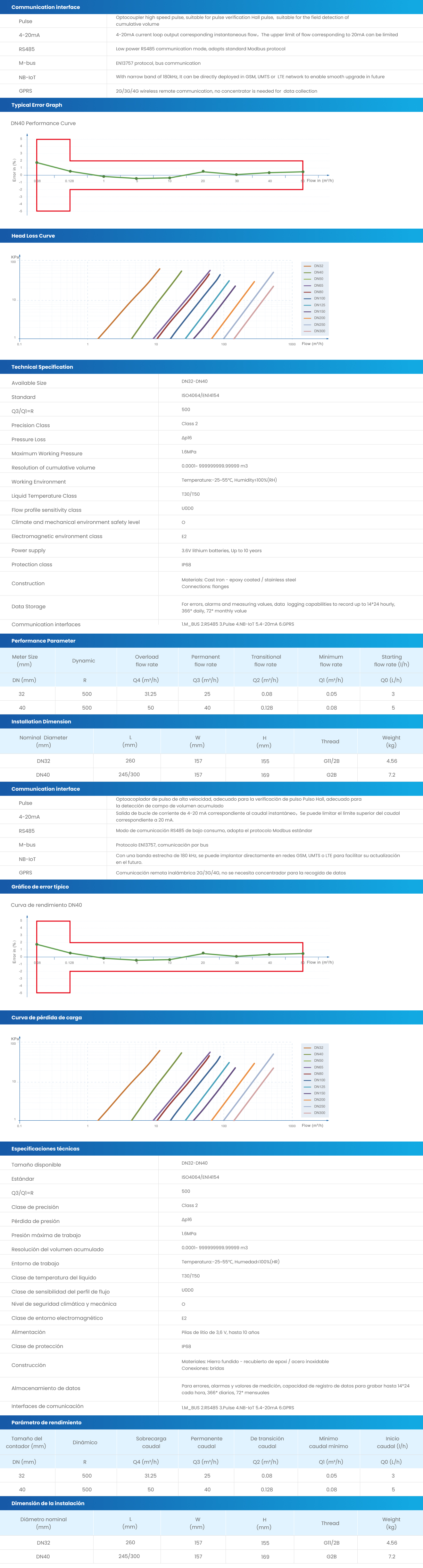

Specifications
